proposed changes for preliminary plan for 110′ patrol boat, 110′ o.a.

Object Number: HH.5.00401.4

Please note zoom and rotate functionality is temporarily unavailable.

Place Made
United States, Rhode Island, Bristol
Date Made
1917
Description

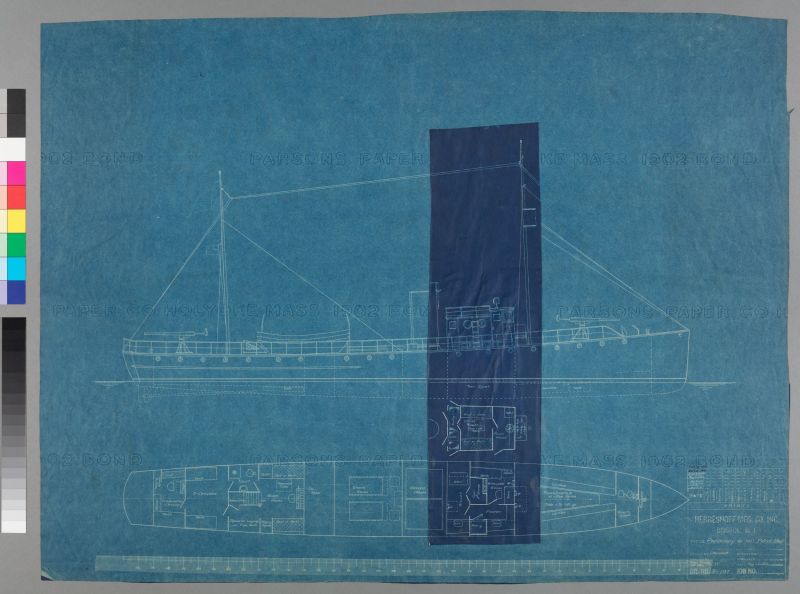

blueprint made from hh.5.401 using separate station strip and arrangement detail layed on top of plan
Major Collection
Nautical
Named Collection
Haffenreffer-Herreshoff Collection

More Details

Measurements
28 1/8" x 22"
Classification
Naval Architecture
Plan Type / View
general arrangement
Scale
3/16" = 1'
Item Count
1
Credit Line
Gift of Haffenreffer Family Foundation, 1961
